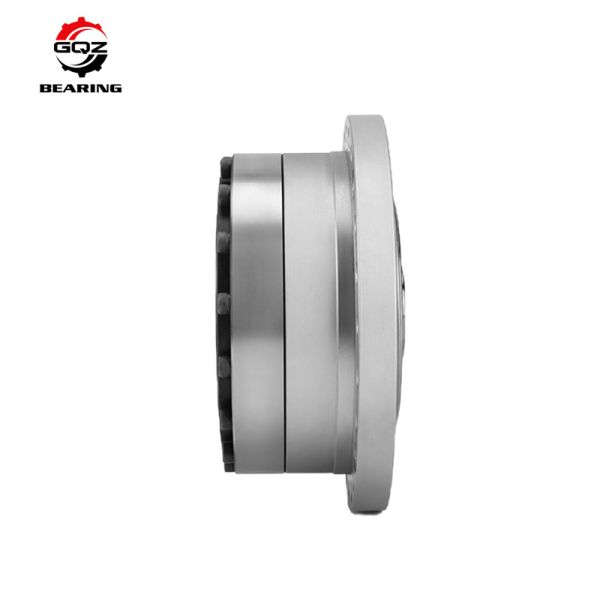

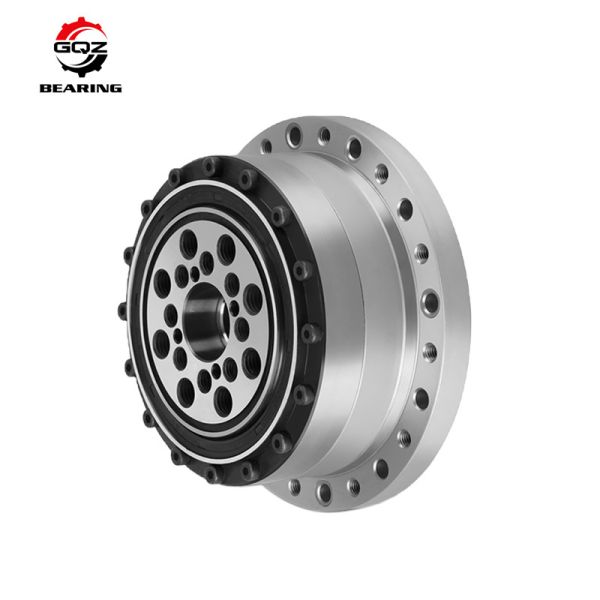

FSN-5 Harmonic Drive Bearing with Zero Backlash High Rigidity and P4 Precision for Industrial Robots

Brand Name : GQZ or OEM

Model Number : FSN-5

Certification : ISO9001

Place of Origin : China

MOQ : 1

Price : USD 50/ PC

Payment Terms : T/T,Western Union

Supply Ability : 1000PCS/WEEK

Packaging Details : Export packaging

Product name : Harmonic Drive Bearing

Model : FSN-5

Precision : P4

Package : cartons, plywood case

Precsion Level : High precision

Speed ratio : 50,100

Rated torque at 2000 rpm : 0.4N,0.6N

Permissible peak torque during start-stop operation : 0.9N,1.4N

Maximum permissible value for average load torque : 0.53N,0.1N

Instantaneous maximum permissible torque : 1.8N,2.7N

Maximum permissible input speed (for grease lubrication) : 10000RPM

Permissible average input speed (grease lubrication) : 6500RPM

Backlash : ≤60

Weight : 0.025KG

Design life : 10000H

Application : Industrial Robots Service Robots Metalworking Machine Tools Medical Devices Measuring, Analytical and Testing Equipment Energy-Related Equipment Paper Manufacturing Equipment

Contact Now

FSN Series Harmonic Drive Bearing FSN-5 for Industrial Robots

The FSN lightweight type is Drive’s specialized solution for weight-sensitive applications. Through structural optimization and advanced material engineering, the FSN Series achieves a lightweight profile without compromising performance. It delivers the same high precision, torque capacity, and rigidity as our standard models, making it the ideal choice for dynamic systems where reducing inertia and overall mass is critical.

Key Features
  • Ultra-Lightweight Design: Significantly reduced weight compared to standard series, helping to lower the total mass of the robotic joint or automation equipment.
  • Uncompromised Performance: Unlike traditional lightweight solutions that may sacrifice durability, the FSN Series maintains the same torque output, stiffness, and transmission accuracy as standard Laifual products.
  • High Power Density: Offers an exceptional torque-to-weight ratio, allowing for the design of faster, more agile, and energy-efficient machinery.
  • Low Moment of Inertia: The reduced mass contributes to lower start-up torque and faster acceleration/deceleration response.
  • Versatile Options: Available in a wide range of sizes and reduction ratios to suit various specific requirements.
  • Easy installation and integration – The unit type design simplifies assembly and ensures stable performance, minimizing errors caused by misalignment.
  • Full Dimensional & Runout Inspection Report Includes certificates of conformity, roundness data, and preload verification-trusted by Tier-1 robot manufacturers.
  • OEM/ODM Supported Custom marking, packaging, or minor dimension tweaks available for qualified partners.
  • Proven in Real Robot Applications Already deployed in 6-axis arms, surgical robots, and AGV steering modules across EU, Japan, and North America.
Technical Specifications
Model Speed ratio Rated torque at 2000 rpm Permissible peak torque during start-stop operation Maximum permissible average load torque Instantaneous maximum permissible torque Permissible maximum input speed (grease lubrication) Permissible average input speed (grease lubrication) Backlash Weight Design life
N·m kgf·m N·m kgf·m N·m kgf·m N·m kgf·m r/min r/min Arc Sec Kg Hour
5 50 0.4 0.04 0.9 0.09 0.53 0.05 1.8 0.18 10000 6500 ≤60 0.025 10000
100 0.6 0.06 1.4 0.14 0.1 0.1 2.7 0.28 10000
8 50 1.8 0.18 3.3 0.34 2.3 0.23 6.6 0.67 8500 3500 ≤30 FSN-I:0.08 10000
100 2.4 0.24 4.8 0.49 3.3 0.34 9 0.92 10000
11 50 3.5 0.36 8.3 0.85 5.5 0.56 17 1.73 8500 3500 ≤30 FSN-I:0.13 10000
100 5 0.51 11 1.12 8.9 0.91 25 2.55 FSN-I:0.17 10000
14 50 5.4 0.55 18 1.8 6.9 0.7 35 3.6 8500 3500 ≤20 FSS-I/II:0.51 10000
80 7.8 0.8 23 2.4 11 1.1 47 4.8 FSN-I/II:0.39 15000
100 7.8 0.8 28 2.9 11 1.1 54 5.5 FSSF-I:0.51 15000
17 50 16 1.6 34 3.5 26 2.6 70 7.1 7300 3500 ≤20 FSS-I/II: 0.67 10000
80 22 2.2 43 4.4 27 2.7 87 8.9 FSS-C: 0.15 15000
100 24 2.4 54 5.5 39 4 108 11 FSN-I/II: 0.52 15000
120 24 2.4 54 5.5 39 4 86 8.8 FSSF-I: 0.67 15000
20 50 25 2.5 56 5.7 34 3.5 98 10 6500 3500 ≤20 FSS-I/II: 0.96 10000
80 34 3.5 74 7.5 47 4.8 127 13 FSS-C: 0.28 15000
100 40 4.1 82 8.4 49 5 147 15 FSN-I/II: 0.73 15000
120 40 4.1 87 8.9 49 5 147 15 FSSF-I: 0.96 15000
160 40 4.1 92 9.4 49 5 147 15 　 15000
25 50 39 4 98 10 55 5.6 186 19 5600 3500 ≤20 FSS-I/II: 1.46 10000
80 63 6.4 137 14 87 8.9 255 26 FSS-C: 0.42 15000
100 67 6.8 157 16 108 11 284 29 FSN-I/II: 1.14 15000
120 67 6.8 167 17 108 11 304 31 FSSF-I: 1.46 15000
160 67 6.8 176 18 108 11 314 32 　 15000
32 50 76 7.8 216 22 108 11 382 39 4800 3500 ≤20 FSS-I/II:3.11 10000
80 118 12 304 31 167 17 568 58 FSS-C:0.89 15000
100 137 14 333 34 216 22 647 66 FSN-I/II: 2.47 15000
120 137 14 353 36 216 22 686 70 　 15000
160 137 14 372 38 216 22 686 70 　 1500
40 50 137 14 402 41 196 20 686 70 4000 3000 ≤20 FSS-I/II: 4.6 10000
80 206 21 519 53 284 29 980 100 FSS-C: 1.7 15000
100 265 27 568 58 372 38 1080 110 FSN-I/II: 3.64 15000
120 294 30 617 63 451 46 1180 120 FSSF-I: 4.6 15000
160 294 30 647 66 451 46 1180 120 　 15000

FSN-5 Harmonic Drive Bearing with Zero Backlash High Rigidity and P4 Precision for Industrial Robots

FSN-5 Harmonic Drive Bearing with Zero Backlash High Rigidity and P4 Precision for Industrial Robots

FSN-5 Harmonic Drive Bearing with Zero Backlash High Rigidity and P4 Precision for Industrial Robots

FSN-5 Harmonic Drive Bearing with Zero Backlash High Rigidity and P4 Precision for Industrial Robots

FSN-5 Harmonic Drive Bearing with Zero Backlash High Rigidity and P4 Precision for Industrial Robots
